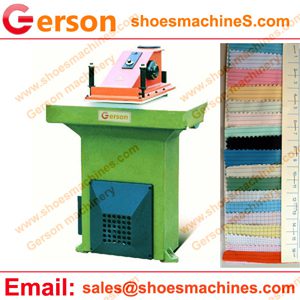

ZigZag sample fabric leather cutting machine

Gerson ZigZag  sample fabric leather cutting machine is not like the other machine ,it is easy to operation and high precision . And in fact ,This kind cutting machine can cut any shapes .

ZigZag  sample fabric leather cutting machine
ZigZag sample fabric leather cutting machine

1.This cutting machine is suitable to cut various sheet materials, leather, synthetic leather, fabric, cardboard, rubber, soft plastics,paper,sponge, cork etc. with single or double edged cutting knives in one or multiple layers.

2.Due to their construction, the machines are quiet and can be operated safely.And it is required double hand operation.

3.The power transmission of the machine is electrohydraulic .

4.The working step:

1)Put the material onto the cutting bed (Most onto cutting pad).
2)Position the die knife (the die knife can be made any shapes by your request), And just push the double button by your hand ,so the uppper head descends under pressure .
3)The material  cutting out by the die knife .
4) The upper head will move upword to original position.
5) The cutting job finished .Just move the head right or left .Then pick up the finished pieces .

Model GSB,GR,GRA,GRB serials
Maximum   Cutting Force 8Tons-500Tons or More
Cutting speed 0.085m/s
Adjustable stroke 5-300mm or more
Tension distance 60-350mm or more
Cuttting table size 650×330mm to 3000mm×2500mm
size 660×780×1500mm to 2800×3200×1700mm
Motor Power 0.75KW to 22Kw
Net Weight (N.W.) 550Kgs to 18000kgs
