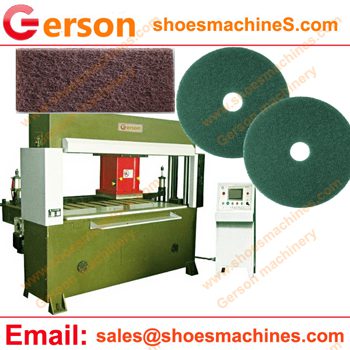

wool floor pad die cutting machine is the die cutting equipment for punching wool buffing pad ,polishing pad,wool floor pad,floor stripping pad,3m floor pad,doodlebug pads,floor scrubbing pad, etc.,
This punching equipment can cutting any shapes including irregular shapes including the oval, ring, trapeziu etc., by die knife such as steel rule die mold,wooden cutting die etc.,
The wool flooring pad mat die cutting mahcinery can die cut in sheet or roll material in single layer or multilayers by the normal cutting die.
Gerson machinery can manufacture diecut machine from mini manual equipment to large custom semi-auto and fully auto machine.
Gerson supply many types die-cutting machinery to meet the needs of manufacturing facility, small facility,shop,home,lab diecut purchasement.
| Model | GRM(A)-25T to 200T |
| Max cutting force(T) | From 25 Tons to 200 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm |
| Cutting table width(mm) | 1800~2500mm or more |
| Based on your material and die | |
| Example: 1600X600mm etc., | |
| Cutting Head Movable trolley | 500×500 to 1000x1000mm |
| Motor power | 3kw to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
