vamp lining cutting machine

Gerson vamp lining cutting machine is die cutting machine for cutting vamp lining,insole,quarter lining,soft padded collar,Toe cap,tongue etc.,The vamp is the  upper part of a shoe,boot or other footwear,covers the front of the foot as far as the back as the join ot the quarter.

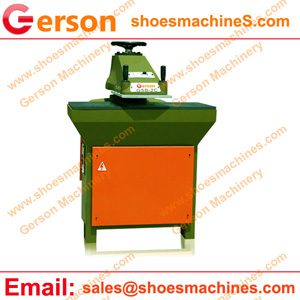

Most vamp lining die cutting by Gerson swing arm cutting machine.

vamp lining cutting machine
vamp lining cutting machine

1.using the cutting dies or kinfe can die cutting any shapes pr pattern of shoes vamp lining.
2.Can die cutting one layer or mutiply layers.
3.Cutting table can be from small to big to meet the original material size.
4.cutting force various choice for different size and layers.
5.Very easy operation and safe with high speed.
6.Any special requirement can consult Gerson for further help,or need more cutting table size ,cutting power ,automatic feed etc.,.

Model GSB,GR,GRA serials
Maximum   Cutting Force 8Tons,10,12,14,15,16,18,20,22,25,27,28,30 ton
Cutting speed 0.085m/s
Adjustable stroke 5-180mm or more
Tension distance 60-190mm or more
Cuttting table size 650×330mm,800,900×430mm,1000,1200×500,600mm
size 660×780×1500mm to 1350×1180×1700mm
Motor Power 0.75KW to 1.5Kw
Net Weight (N.W.) 550Kgs to 1200kgs
