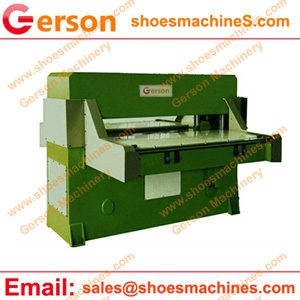

Vacuum Forming Thermoforming Die Cutting machine

Gerson die cutting machine for Vacuum Forming Thermo Forming,Plastic Thermoforming such as Plastic Bin Dome, Barrier,Egg Carton,Tote Tray etc., used in Disposable Food Packaging,Consumer Goods Packaging,Industrial and Medical,Aerospace, Automotive and Marine etc.,

 Vacuum Forming Thermoforming Die Cutting machine

Vacuum Forming Thermoforming Die Cutting machine

1.This machine is especially for die cutting BLISTER PACKAGING,CLAMSHELL PACKAGING,TRAYS,CONTAINERS,Bin or any similar products etc.,
2.The machine can custom build according to the production requirement ,the material size,cutting knife/die size etc.,So that can meet any special requirement for the customers need.
3.The die cutting machine have many feed types : hand feed ,auto sliding table feed ,roller feed,extended tray/table feed System for any production need.
4.It is hydraulic driven which using high quality and have auto balance system to make sure the high quality of the machine.
5.Any special requirement welcoem to contact Gerson.

Model GRBC-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×5/600,700,800,900,1000,1200, 1500,2000
1470×5/600,700,800,900,1000,1200, 1500,2000
1600×5/600,700,800,900,1000,1200, 1500,2000 or more
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
