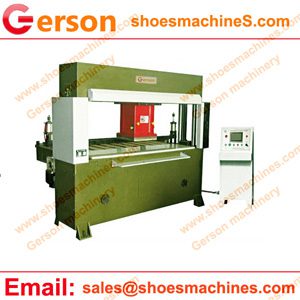

Travelling head cutting machine for PVC/PU/Rubber football,volley ball,rugby balls

The Gerson travelling head cutting machine is widely used for production of  PVC/PU/Rubber material football,volley ball,rugby balls   sport ball etc.,.

Travelling head cutting machine for PVC/PU/Rubber football,volley ball,rugby balls
Travelling head cutting machine for PVC/PU/Rubber football,volley ball,rugby balls

The travelling head mounted with cutting die and can easily change if you want to cut different shapes. Automatic travelling head can set by worker easily and improve the prodution effeciency

1.The cutting setting is simple,easy to operate.
2.Button push controls with two hand operation make the safety for the workers.
3.Low-loss power and low noise.
4.The cutting trolley displacement speed will make work efficiency.
5.High reliablility ,low noise,low consuption.
6.You could use for roller materiall cutting and sheet cutting.

Model GRM(A)-25T to 200T
Max cutting force(T) From 25 Tons to 200 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting table width(mm) 1800~2500mm or more
Based on your material and die
Example: 1600X600mm etc.,
Cutting Head Movable trolley 500×500 to 1000x1000mm
Motor power 3kw to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make die cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,feeding type etc.,
