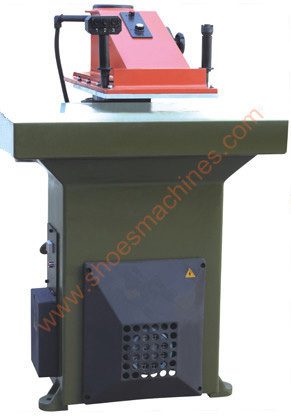

3 push cutting power selection clicker press, because of this as the operator can move from a smaller die to a larger cutting die (area) rather than adjust the cutting power settings, any one of three buttons can be employed for the left button console to attain an exact cut.
The cutting power is well adjusted as appropriate throughout the movement of any two potentiometers on the cutting beam, the smaller of the two adjusts the first button on the 3 and also the larger controls another push. Your second push buttons cutting power can be an average taken between smaller and larger settings.
The control push buttons are ergonomic, so allowing the operator increased comfort. The push buttons are controlled by way of two hand safety relay, meaning the buttons have to be activated 5/10ths/sec in between each other too allow cutting stroke activation, and requires constant activation to keep up a cut stroke
Model | GRA-220/3 | GRA-270/3 | GRA-270M/3 | GRA-270L/3 | |
Maximum cutting force | 22T | 27T | 27T | 27T | |
Table area | 900×430mm | 1000×500mm | 1000×500mm | 1000×500mm | |
Swing arm width | 370mm | 370mm | 500mm | 610mm | |
Cutting stroke | 90mm | 90mm | 90mm | 90mm | |
Motor power | 1.1KW | 1.5KW | 1.5KW | 1.5KW | |
Electric Supply Voltage | 3×440/415/400/380/220/200V, 50/60 Hz | ||||
Single phase 240V/220V, 50/60 Hz | |||||
Packing size | 1050×1000×1500mm | 1150×1200×1500mm | 1150×1200×1500mm | 1150×1200×1500mm | |
N.W(with oil) | 650kg | 960Kg | 1050kg | 1200kg | |
G.W | 740kg | 1120Kg | 1210kg | 1360kg |
