Three key handle clicker press operation instruction

Three key handle clicker press GRA model operation instruction

A small keyboard is installed on left handle,where there are three including No. 1,2 and 3.These keys are used to select cutting blade,which donot require operator to adjust cutting force whenever replacing cutting press knife of different sizes.When using fine cutting press knife to cut soft material,choose No.1 key on left of small keyboard or prolong cutting time gradually through pressure driver reaching proper cutting force.

When using medium cutting press knife to cut semi-hard materials,choose No.2 key on right of small keyboard.

When using rough cutting press knife to cut material that especially hard to cut ,choose No.3 key of small keyboard or increase its mesured value gradually throgh pressure driver until reaching required cutting force.

Die Cutting

After proper adjusting stroke (recommend stroke 6-8mm) of adjustment disc;dimulataneously press key on right handle and the most suitable one amone three keys on left handle.According to fineness or roughness of cutting press knife,adjust pressure driver working with No.1 and No.3 keys when necessary .In this way,optimum cutting effect can be acheived and loss of cutting table can be minimized.

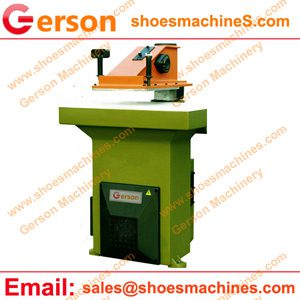

Three handl die cutting machine details:



Three different cutting pressures for your custom cutting choice.These will enable the application of different sized (surface area) dies with virtually no repeating adjustments.So certainly will Improve your cutting efficiency with multi production.

Model GRA-220/3 GRA-270/3 GRA-270M/3 GRA-270L/3
Maximum cutting force 22T 27T 27T 27T
Table area 900×430mm 1000×500mm 1000×500mm 1000×500mm
Swing arm width 370mm 370mm 500mm 610mm
Cutting stroke 90mm 90mm 90mm 90mm
Motor power 1.1KW 1.5KW 1.5KW 1.5KW
Electric Supply Voltage 3×440/415/400/380/220/200V, 50/60 Hz
Single phase 240V/220V, 50/60 Hz
Packing size 1050×1000×1500mm 1150×1200×1500mm 1150×1200×1500mm 1150×1200×1500mm
N.W(with oil) 650kg 960Kg 1050kg 1200kg
G.W 740kg 1120Kg 1210kg 1360kg
