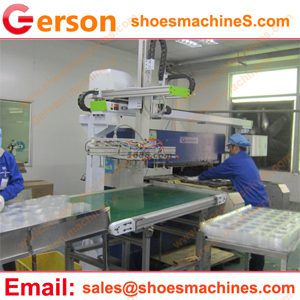

Thermoforming blister Sheet Die Cutting machine is die cutting machine for making polypropylene,APET,RPET, PETG, HIPS, PVC, polystyrene foam, PS foam sheet ,for example making plastic tray and pvc box ,blister clamshell, tray, plastic box etc.,
If you want to make such as BLISTER PACKAGING,CLAMSHELL PACKAGING,CUSTOM VACUUM FORMED TRAYS,BOX INSERT TRAYS,POP COUNTERTOP DISPLAYS ,PVC sheet etc.,This machine can die cut for each products.
The machine can die cut any shapes and size by the cutting die .It also can manual feed or automatic feed the material and cutting.And autoamtic pick up the cutting parts after cutting .
The cutting table size ,cutting force etc., all can custom build by Gerson machinery.
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm |
| Cutting area(mm) | (500-3000)X(500-3000)mm |
| Based on your material and die | |
| Example: 1700X900mm etc., | |
| Motor power | 1.5 to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
