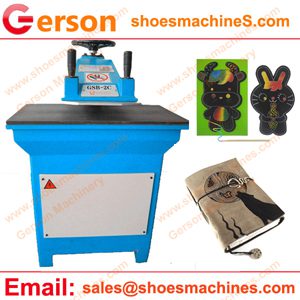

The art crafts productions cutting machine

Gerson die cutting machine is quietly suitable for cutting Craft Products with material : paper,leather,rubber soft or semi hard material.

The art crafts productions cutting machine
The art crafts productions cutting machine

For the small pieces ,The swing arm cutting machine is enough for die cutting.
For big size material ,Gerson beam press can be good for die cutting .
1.The table size of this machine ranges from 900mm*400mm,900mm*430mm, 1000mm*500mm etc. with the cutting force from 8 Ton ,10 Tons, 12 tons,14 Tons,18 tons,20 Tons,22 Tons, 27/28 Tons etc.,
2.The beam is of light alloy is easy to swing.
3.The machine adaptable for all bra factory requirements with two sizes.
4.Production increases about 6-10% which have been noted over mechanical clicking machines
5.Cutting power is from 10 tons to 25 tons for factory choice.
6.Other swing arm press models for choice: GRA model and GR models.

Please contact Gerson sale department if you have any question .

Model GSB/10/12/14/15/16/18/20/25
Cutting Force 10,12,14,15,16,18,20,25 Tons
Sway Arm Width 330X450mm,350X450mm,450X550mm
Stroke Adjustment 5-75mm
Distance Between Upper Table And Lower Table 60-140mm
Table Area 900X400mm,1000X500mm
Electric Supply Voltage 3×440/415/400/380 /220V, 50/60 Hz
Motor Power 0.75kw,1.1kw,1.5Kw
Packing Size(LXWXH) 1100X1100X1700mm
Weight 500Kg/650kg/1000kg/1100kg
Hydraulic oil (46#) 50 Liters
