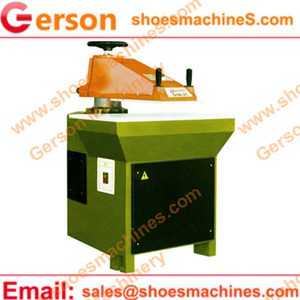

Textile clicker press

Gerson clicker press for die cutting textile material including silk, wool, linen, cotton, such synthetic fibers etc.,it is for clothing and for containers such as bags and baskets etc.,

 Textile clicker press

Textile clicker press

The clicker press type die cutting press for textile is for cutting-out small pieces with shaped cutting knife or die .it can be die-cut any shapes with these special cutting dies.

If want to cut out the big pieces or cutting out many pieces at a time ,can use Gerson beam press that have more bigger cutting area and force.

1.The machine is also applicable to cutting of various other nonmetal materials such as the leather,plastic,foam,paper,rubber etc.,
2.The use of time control allows for simple and convenient setting of cutter depth.
3.operation with both hands, safe and reliable for the operator.
4.The inertial energy of flying wheel is used so that the energy consumption is low and the operation stable.
5. The whole machine uses self-lubricating system to reduce wear and extend the service life of the machine.
6.The cutting force and cutting area can be custom build according to the requirement.

Model GSB,GR,GRA model
Maximum Cutting Force 8-30 tons
Cutting speed 0.085m/s
Adjustable stroke 5-180mm
Tension distance 60-250mm
Cuttting table size 800,900,1000,1200×400,500mm
size 660×780×1500mm or more
Motor Power 0.75KW,1.1KW
Net Weight (N.W.) 450Kgs-1100Kgs
