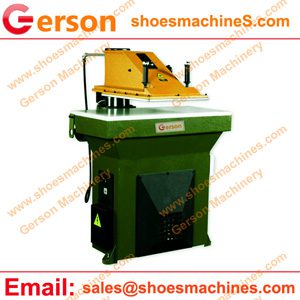

Swing Head Clicker Press

Gerson swing head Clicker Press   that are perfect for embroidery shops,small plant ,lab,or person using for die cutting small things leather,fabric ,paper etc.,These clicker press  is one of Gerson die cutting presses products.

Swing Head Clicker Press
Swing Head Clicker Press

1.It can be esily die  cutting by hydraulic driven system ,easy operate with the pushbutton with the custom shaped cutting die/knife.

2.The top head or beam can be swing easily after once cutting for change the position or cutting die.

3.The cutting table/bed size and cutting force can be custom build according to the material size .

4.It is good for single layer or multi-layers in sheet or roll material.

5.Any special requirement welcome .such as long stroke ,large cutting area,big cutting power etc.,

Model Number GSB,GR,GRA serials
Cutting area 650×330mm,800,900×430mm,1000,1200×500,600mm
Arm width 370*275mm,500mm,600mm
M.C.F. 8Tons,10,12,14,15,16,18,20,22,25,27,28,30 ton
Power 2HP
Stroke 5-95mm
G.W. 550Kgs to 1200kgs
N.W. 500kg to 1100kgs
Color custom built
Dimensions 650*750*1500mm ,more
Packing size 800*850*1700mm ,more
Voltage three/single phase,380v/220v
Hydraulic oil 46# 48# 68#
Function Die cutting
Automatic Grade Semi-Automatic
Machine Die cutting
Driven Type Hydraulic
Type Swing head
Condition New
