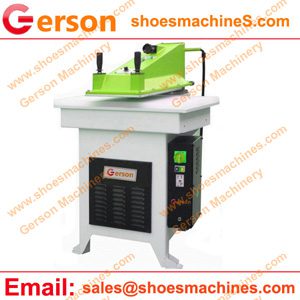

Swing Beam Hydraulic Cutting Press Machine

Gerson brand Swing Beam Hydraulic Cutting Press Machine is widely used for die cutting most soft and semi-rigid material:Paper,Cardboard,Cork,Leather,PVC,Foam,Fabric,Plastic,Rubber etc.,

 Swing Beam Hydraulic Cutting Press Machine

Swing Beam Hydraulic Cutting Press Machine

Place the polypropylene cutting board onto the work table, then you place the cutting knife/die on top of the material and then lower the head down on top of the die, via two safety switches, pressed simultaneously.

1.Custom build or many models for choice :such as the cutting power, size of the cutting table and of the cutting platen.
2.Control systems such as the power setting, the fine tuning of the stroke end, and the devices that make the arm easier to move.
3.It is easily operation with double hand and low noise.

Model GSB,GR,GRA serials
Maximum   Cutting Force 8Tons,10,12,14,15,16,18,20,22,25,27,28,30 ton
Cutting speed 0.085m/s
Adjustable stroke 5-180mm or more
Tension distance 60-190mm or more
Cuttting table size 650×330mm,800,900×430mm,1000,1200×500,600mm
size 660×780×1500mm to 1350×1180×1700mm
Motor Power 0.75KW to 1.5Kw
Net Weight (N.W.) 550Kgs to 1200kgs
