Swing arm hydraulic cutting press

swing arm hydraulic cutting press is one type of hydraulic cutting press made by Gerson machinery.It is using hydraulic driven system to cut the material out for production need.

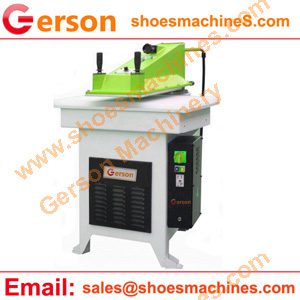

Swing arm hydraulic cutting press
Swing arm hydraulic cutting press

1.The swing arm can move easily left or right when you put the material on the bed of machine.Then position the cutting knife on the material ,swing arm over the cutting knife.Just push the double button by your double hand ,The beam will decend under the hydraulic pressure to cut out the shapes from the material .

2.The hydraulic cutting press can be used for cutting the following material including : leather ,fabric,textile ,cortton ,eva,pcc,epe,plastic,rubber sheet ,paper, cardboard,cork,wood etc.,

3.Compare to the other hand machine or mechanical cutting machine ,This hydraulic cutting machine is very low noise and very easy for using and long service  time  without any maintenance.

4.Gerson have small size for small piece cutting from 5 ton,and large cutting pressure for large material cutting .If you have any question related for cutting material in your business or job ,pleaes contact Gerson for more details.

5.The below is one of hydraulic cutting machine specification .Gerson have any model swing arm hydraulic cutting press.

Model

GR-20C

GR-27C

GR-27C/1

GR-27C/2

Max. cutting power

20 ton

27 ton

 27 ton

27 ton

Maximum stroke(mm)

80

100

100

 100

Cutting table(mm)

 900 x 430

 900 x 450

1000 x 500

1200 x 500

Arm width(mm)

 370

370

500/600

500/600

Motor power

HP. 1

HP. 1,5

HP. 1,5

HP. 1,5

Net weight with oil

Kg. 570

Kg. 780

Kg. 840

Kg. 910

Sizes about (mm)

 1000 x 900
h. 935

900 x 1000
h. 1370

1000 x 1000
h. 1370

 1200 x 1030
h. 1370

Sizes sea packing(mm)

1050 x 1085
h. 1500

1050 x 1150
h. 1570

1150 x 1150
h. 1570

1350 x 1180
h. 1570

Gross weight and volume with sea packing

Kg. 640
m1,7

Kg. 900
m1,90

Kg. 980
m2,10

Kg. 1055
m2,50
