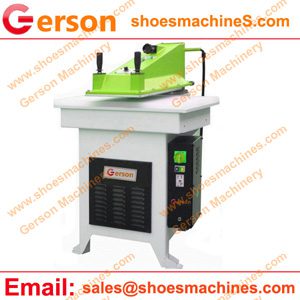

swing arm die cutter 20 and 27 tons

The swing arm die cutter is one of Gerson machinery models.This die cutter is widely used for the small pieces die cut for gaskets,paper, foam & rubber, packaging, abrasives, plastics, auto interior components, composites, industrial textiles, shoes footwear & leather,auto parts,electronics etc.,

1. The swing arm die cutter machine body are welded by steel sheets with firm structure and light weight.
2. It is provided with automatic lubricating system to lessen abrasion and prolong service life.
3. Double hands operation function guarantee the safety of operators.
4. Double-direction oil way design provides stability and reliability.
5. Two modes such as microcomputer controller and PC electronic circuit are optional for controlling the lower limit position of stroke with high precision, flexibility and convenience.

Model	GR-20C	GR-27C	GR-27C/1	GR-27C/2
Max. cutting power	20 ton	27 ton	27 ton	27 ton
Maximum stroke(mm)	80	100	100	100
Cutting table(mm)	900 x 430	900 x 450	1000 x 500	1200 x 500
Arm width(mm)	370	370	500/600	500/600
Motor power	HP. 1	HP. 1,5	HP. 1,5	HP. 1,5
Net weight with oil	Kg. 570	Kg. 780	Kg. 840	Kg. 910
Sizes about (mm)	1000 x 900 h. 935	900 x 1000 h. 1370	1000 x 1000 h. 1370	1200 x 1030 h. 1370
Sizes sea packing(mm)	1050 x 1085 h. 1500	1050 x 1150 h. 1570	1150 x 1150 h. 1570	1350 x 1180 h. 1570
Gross weight and volume with sea packing	Kg. 640 m³1,7	Kg. 900 m³1,90	Kg. 980 m³2,10	Kg. 1055 m³2,50
