swing arm clicking press

Gerson swing arm clicking press is swing arm type clicking press for sale. This die cutting press is used for many industries and lab or home using. it can die cutting the material leather,fabric,paper,plastic,rubber etc.,

swing arm clicking press
swing arm clicking press

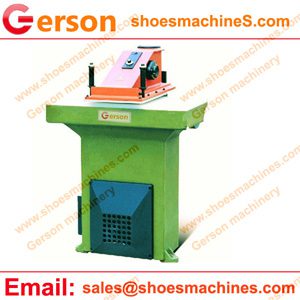

(The above photo is GRA model)

1.The clicking press is applicable for cutting nonmetal materials with small  cutter dies/knife.

2.Double hand operation button switch to guarantee the safety of operator.

3.High speed and low energy consumption.

4.Cutting force from 8 tons to 28 tons and cutting table size from small size to big size.

5.Any special requirement accept custom build.

Model

GRA,GSB,GR

Max cutting force

8,10,12,14/15/16,18,20,25,27,28 tons

Working area

650,800,900,1000,1200X500,600mm

Swing arm width

370mm,500mm,600mm

Cutting stroke

90mm

Motor power

1.5KW

Electric Supply Voltage

3×440/415/400/380/220/200V, 50/60 Hz

Single phase 240V/220V, 50/60 Hz

Machines dimensions

1000X1020X1410mm

Packing size

1100X1100X1600mm

N.W(with oil)

480-980kg

G.W

500-1000kg
