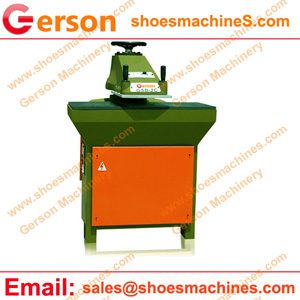

Swing arm clicking machine

Gerson swing arm clicking machine is also called swing arm clicker press which is used to die cutting leather ,fabric,rubber,plastic,cork,wood,paper etc., soft and semi-rigid material with small different cutting dies.

These die cutting machine are safe and easy to operate by the worker.Only  need to put the material on the cutting bed of the machine, position the cut die on the material . The beam or head descends by hydraulic power to die cut the required cut shape from single or multiple layers of soft or semi-rigid material.

1.From 8 tons t0 28 tons for customers choice.

2.Various cutting area

3. Double hands operation function  guarantee the safety of operators.

4.Custom color ,size,power etc made.

Swing arm clicking machine



The following swing arm clicking machine specifications:

Model GSB,GR,GRA,GRB serials
Max cutting force(T)  8Tons-500Tons or More
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting table 650×330mm to 3000mm×2500mm
Based on your material and die
Example: 1000X500mm etc.,
Cutting Head 330×450 to More
Motor power 0.75kw to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
