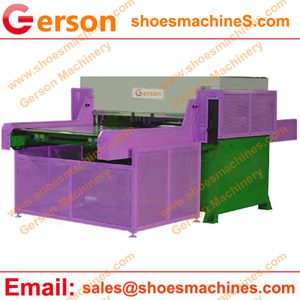

Square Tile die Cutting Press Machine

Gerson Square Tile die Cutting Press Machine is special die cutting machine for cutting out square tile ,EVA Foam Interlocking Tiles,Rubber Gym Flooring, Weight Room Flooring, Entrance Mats, Anti-Fatigue Mats etc.,

Square Tile die Cutting Press Machine
Square Tile die Cutting Press Machine

1.Large cutting area cut be die cut for more bigger size of the tile mat or any other similar material form sheet or rolls.

2.The machine can die cut any shapes of tile or any similar material ,not only square shap ,any other shapes such as round ,irregular shape by the formed cutting die/knife.

3.Manual feed or any autoamtic feeding available depending on the material and production requirement.Auto sheet sliding table feeding ,auto roll feeding and die cutting etc.,

4. Gerson can design and manufactured fully automatic to accommodate any die board or cutting board length to suit your production.

5.Any more information or any more question related about the machine or requirement ,welcome to contact Gerson.

Model GRBC-25T to 500T
Max cutting force(T) From 25T to 500
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500,2000 or more
1470×600,700,800,900,1000,1200, 1500,2000 or more
1600×600,700,800,900,1000,1200, 1500,2000 or more
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
1800 to 18500
