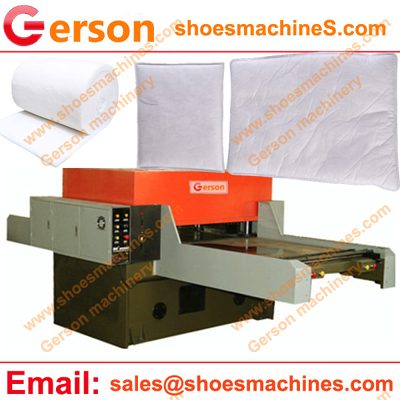

Sound-absorption cotton insulation cutting machine

Sound-absorption cotton insulation cutting machine is the die cutting machine for punching out Natural Fiber Acoustic Insulation ,Sound-absorption cotton insulation sheet etc.,

Sound-absorption cotton insulation cutting machine
Sound-absorption cotton insulation cutting machine

This machine can also diecut Mineral wool is also an excellent choice for thermal insulation,fiberglass acoustic insulation,Blown Cellulose Soundproofing Insulation etc.,

The machine used the double oil cylinders, precision four columns auto-balancing structure, ensure the uniform cutting depth in the cutting area .

The material feed type ,cutting pressure ,cutting table size ,cutting tools mold etc., can custom built based on your request.

To be at the cutting edge of technology,we keep learning and manufacturing the high performance machinery to meet our customers’ requirement.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(500-3000)mm
Based on your material and die
Example: 2200X900mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500
