Soft Conductive Foam Die Cutting Machine

Gerson soft Conuctive foam die cutting machine is good cutting machine for die cutitng conductive foam,Insulation foam,Flame-retardant foam ,These foam are made of IXPE,EVA,PU,EPS etc.,

For large size of foam and die ,that can use Gerson beam press.

Soft Conductive Foam Die Cutting Machine
Soft Conductive Foam Die Cutting Machine

1.The upper beam and cutting bed are the same size that is large enough for cutting foam .
2.The cutting die can be mounted up or down.
3.The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.
4.Material feed systems can handle rolls or sheet format, automatic or manual operations.
5.Any specifc requirement of production can be custom built.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500

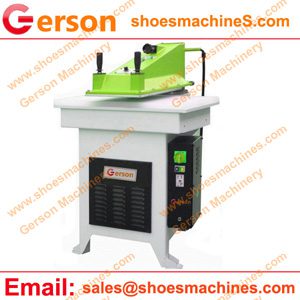

For the small size of foam and the small die.That could use samll die clicker press.

Soft Conductive Foam Die Cutting Machine
Soft Conductive Foam Die Cutting Machine

1.it is small cutting table compared to the beam press.

2.Using swing arm to change the cutting die and material.

3.Two hands switches operate to ensure the operator is safe and easy.

4.The cutting table and cutting force can custom build.

Model Number GSB,GR,GRA serials
Cutting area 650×330mm,800,900×430mm,1000,1200×500,600mm
Arm width 370*275mm,500mm,600mm
M.C.F. 8Tons,10,12,14,15,16,18,20,22,25,27,28,30 ton
Power 2HP
Stroke 5-95mm
G.W. 550Kgs to 1200kgs
N.W. 500kg to 1100kgs
Color custom built
Dimensions 650*750*1500mm ,more
Packing size 800*850*1700mm ,more
Voltage three/single phase,380v/220v
Hydraulic oil 46# 48# 68#
Function Die cutting
Automatic Grade Semi-Automatic
Machine Die cutting
Driven Type Hydraulic
Type Swing head
Condition New
