sock lining cutting machine

Gerson sock lining cutting machine is die cutting machine for sock lining or sock liner which  laid on top of the insole ofa shoe, boot, or other footwear.So some also called insole cutting machine.

The sock lining material have Nonwoven Fiber fabric,paper cardboard,eva,Cellulose,leather,PU etc.,There have two types for die cutting sock lining.One is swing arm cutting machine,ther other is traveling head press.

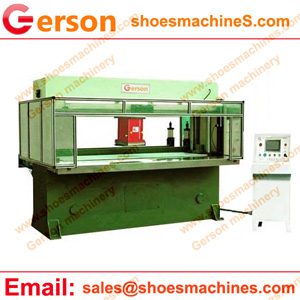

Traveling head press:

sock lining cutting machine
sock lining cutting machine

The traveling head is running over the total bed width of the machine between the support columns of the machine.
It can be automatic feed and automatic cutting ;Or manual feed and hand operated cutting .
The cutting table from 1600mm*500mm to 2500mm*1500mm.
The traveling head size from 500mm*500mm to 1500mm*1500mm

Gerson can design and manufacture according to the production requirement.

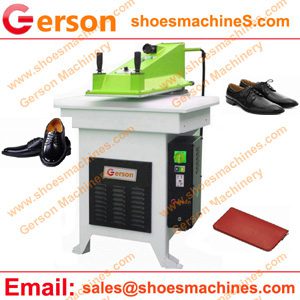

swing arm cutting machine:

sock lining cutting machine
sock lining cutting machine

1.It is easy to operate with swing arm and button press.
2.The cutting table from 650×330mm to 1200mm*600mm.
3.The cutting force is from 8 tonnages to 30 tonnages.
