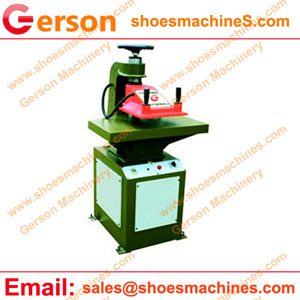

Small Size Hydraulic Cutting Machine

Gerson small size hydraulic cutting machine is one of  Gerson hydraulic cutting machine .Gerson also have the big size hydraulic cutting machine for industry using.

Small Size Hydraulic Cutting Machine
Small Size Hydraulic Cutting Machine

1.It is for die cutting the small pieces of soft material leather,gasket,fabric,cork,paper .

2.It is good used in small shop,plant ,lab for cutting sample,glove,shoes etc.,

3.Two hands switches operate to ensure the operator is safe and easy.

4.The position of the swing arm is adjusted by the upper handwheel on the top of clicking press,which can obtain the best cutting position ,which can increase work efficiency and prolong the service life of cutting dies/knife or board.

5.Any bigger size of cutting table and cutting force can be custom built.

Model Number GSB-8/10
Cutting area 650*350mm
Arm width 370*275mm
M.C.F. 8-10tons
Power 2HP
Stroke 5-95mm
G.W. 550kg
N.W. 500kg
Color custom built
Dimensions 650*750*1500mm
Packing size 800*850*1700mm
Voltage three/single phase,380v/220v
Hydraulic oil 46# 48# 68#
Function Die cutting
Automatic Grade Semi-Automatic
Machine hydraulic
Driven Type Hydraulic
Type small size
Condition New
