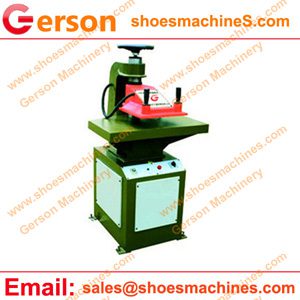

Gerson small die punching press is the small type punching machine that could die cutting out many small parts from the non-metal material:paper,cork,plastic,rubber,leather,fabric etc.,
1.This small die punch press is hydraulic cutting machine using top quality hydraulic component.
2.Double hand operation to make sure the high safety of the operator .
3.The press can die cut any shapes and could work with many cutting knife/die,such as Steel rule die,Solid steel die etc.,
4.The cutting force is about 8 ton(80 kn) ,any other cutting force also available .
5.The cutting table size and upper press beam can manufacture according to the material and die size.
6.Gerson welcome any custom build machine .
Model: GSB,GR,GRA
Cutting Force: 10 Ton (from 8 ton to 20 tons)
Bed Size: 330,400,500 x 1000,800,900,1200 mm
Cutting Stroke: 0-75 mm
Distance between beam to Bed: 65-150 mm
Motor Power:0.75kw, 1.1KW,1.5 KW
Hydraulic Oil: 60 Liter of 46 anti-wear hydraulic oil
Net Weight: 400-1000 KGS
Dimension: small size to 1100 x 1100 x 1400 mm
