Small die punch press

Gerson small die punch press is good press machine that designed by Gerson .We have both hand small die punch press and hydraulic punch press which using hydraulic driven system to press the any shape of the material by a variety of die.

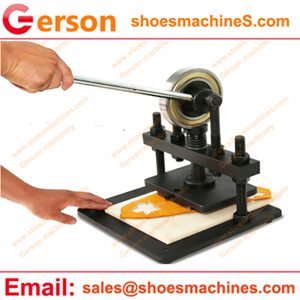

First it is hand type small mini die punch press which used for many industry and material.You could see the below :

small die punch press

This small die punch press can cut most small pieces leather ,fabric ,rubber ,papper ,foam ,felt etc.,it can put on table and for low volumn die cutting works.Gerson can design any die punch press to meet your requirement.

Model Gerson GMB
Maximum Cutting Force 1 ton ,2 ton,3 ton,4 ton,5-20ton
Cutting speed based on your hand
Adjustable stroke 12mm ,50mm or more
Tension distance 10-100mm or more
Upper beam size 200×100mm to 500mm×500mm
Cutting table size 200×100mm to 500mm×500mm
Net Weight (N.W.) 20Kgs to 200kgs

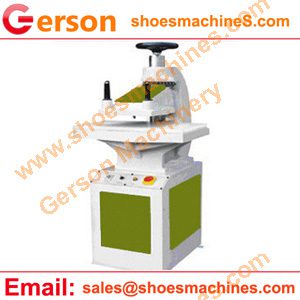

The second is hydraulic type small punch press.

Small die punch press
Small die punch press

small die punch press1.This small die punch press can punch most soft and semi-rigid material :leather,cloth,rubber,plastic,paper,foam,PVC,cork,felt in sheet or roll .
2.It can punch in a single layer or Multiple layers.
3.Using high quality hydraulic system to make sure the good quality of the machine.
4.Double hand operated make sure high safety for the worker.
5.The punch table,punch stroke,punch force,die can custom build .
6.Welcome any special requirement for the punch press.

Model GSB,GR,GRA model
Maximum Cutting Force 8-30 tons
Punch speed 0.085m/s
Adjustable stroke 5-180mm
Tension distance 60-250mm
Punch table size 800,900,1000,1200×400,500,600mm
size 660×780×1500mm or more
Motor Power 0.75KW,1.1KW
Net Weight (N.W.) 450Kgs-1100Kgs
