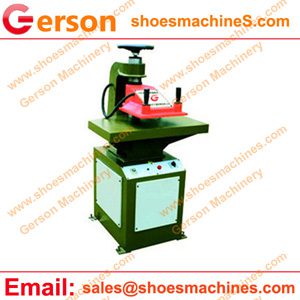

Gerson small die clicker press is small type clicker press .the clicker press is one of die cutting press that manufactured by Gerson machinery.
1.This kind of clicker press need to cut the material with small cutiing knife/die ,so we also called small die clicker press.
2.The small die cutting press can die cut the material including such as the leather,fabric,plastic,rubber,foam,composite,cork,wood panel etc.,
3.It is hydraulic driven make the machine more powerful and easy operation .
4.Double hand make the safe for the operator and with very lowr consumption.
5.Custom build cutting table and cutting force welcome.
| Model Number | GSB-8/10 |
| Cutting area | 650*350mm |
| Arm width | 370*275mm |
| M.C.F. | 8-10tons |
| Power | 2HP |
| Stroke | 5-95mm |
| G.W. | 550kg |
| N.W. | 500kg |
| Color | custom built |
| Dimensions | 650*750*1500mm |
| Packing size | 800*850*1700mm |
| Voltage | three/single phase,380v/220v |
| Hydraulic oil | 46# 48# 68# |
| Function | Die cutting |
| Automatic Grade | Semi-Automatic |
| Machine | hydraulic |
| Driven Type | Hydraulic |
| Type | small size |
| Condition | New |
