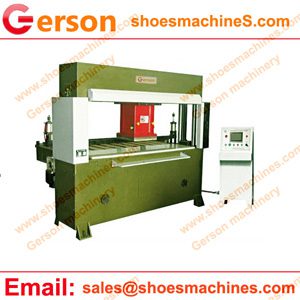

Gerson die cutting machine for soft industrial gasket ,pads ,insulation parts, seals, shims, spacers and washer material . These material including Sponge Rubbers, Foams, Plastics, Corks, Fibres, Felts, Silicones and Poron.Urethanes, Phenolics, Cork/Rubber Compositions, Mylar, Vinyl, Kapton, Polypropylene, and Nomex etc., more.
Gerson both have manual die cutting press machine and CNC automatic die cutting press machine for die cutting these material.
The manual feed die cutting press have mechanical & Hydraulic in various formats and sizes. Mechanical presses allow for complete control whilst the hydraulic press section allows for the production of larger pressed gaskets.
CNC automatic die cutting presses for automated punching of gaskets, pads and washers. Precisely manufactured tooling made to the highest specifications is mounted on the head of the machine; programming is then carried out incorporating quantities required, tooling configuration, and yield achievement along with other considerations.These CNC cutting Presses have huge capacity to manufacture large quantities of finished product to the highest possible specification within the shortest possible time.
For more detailed models of manual die cutting press and CNC die cutting press ,please contact Gerson sales department .Any special requirement welcome.
| Model | GRM(A)-25T to 200T |
| Max cutting force(T) | From 25 Tons to 200 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm |
| Cutting table width(mm) | 1800~2500mm or more |
| Based on your material and die | |
| Example: 1600X600mm etc., | |
| Cutting Head
Movable trolley |
500×500 to 1000x1000mm |
| Motor power | 3kw to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
Gerson can make the Silicone rubber Foam Gaskets Pads washer die cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
