Gerson shoes die cutting machine is one of shoes machinery .The shoes die cutting machine is for cutting shoes upper . There have three types die cutting machine for shoes production:swing arm cutting machine ,travelling head cutting machine,plane cutting machine.These die cutting machines are also cutting for fancy goods, leather goods, sport equipment and similar production as well as for cutting of similar soft and semi-rigid materials like paper, cardboard, textile, felt and other.

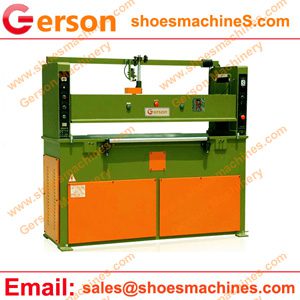

One:Plane cutting machine:
The plane cutting machine have large cutting area then swing arm cutting machine.
1).The operation is easy by both hands, which is safe and reliable.
The noise is low.
2).This plane cutting press is high quality, reliability, high speed,
3)Adopted automatic lubricating system which supplies oil to prolong the service life of the machine.
4.The depth of cutting power is set to be simple and accurate.
MODEL | CUTTING FOPCE | MACHINE BEO | MOTOR POWER | CUTTING APEA | STROKE | NET WEIGHT |
GRP-25T | 25TON | 1850x1470x1250 | 3HP | 1250×500 | 50~160mm | 1200 |
2070x1470x1250 | 1470×500 | 1400 | ||||
2200x1470x1250 | 1600×500 | 1600 | ||||
GRP-35T | 35TON | 1850x1550x1500 | 5HP | 1250×500 | 50~160mm | 1700 |
2070x1550x1500 | 1470×500 | 1800 | ||||
2200x1550x1500 | 1600×600 |
1900
|
Two.swing arm cutting machine.
1.Also called clicker press .It is with swing arm or beam .
2.This swing arm cutting machine table size is about 900mm*400mm,900mm*430mm,1000mm*500mm etc.,The cutting force is from 8 Ton ,10 Tons, 12 tons,14,15,16 Tons,18 tons,20 Tons,22 Tons, 27/28 Tons etc.,
3.Safe and easy to operate by the worker
Three:Travelling head cutting machine:
This die cutting machine with travelling head or movable head/trolley.so sometimes we also called movable trolley press.
1.Die cut materials that are soft or rigid
2.Die cut materials in single or multiple layers
3.The cutting setting is simple,easy to operate.
4.All standard die constructions can be used – strip steel, wood forme or forged steel
5.Powered head traverse for effortless operation
6.Simple, accurate die setting and daylight adjustment
7.High reliablility ,low noise,low consuption.
8.Photocell front barrier for complete safety
9.Illuminated work area
10.Complete with high grade polypropylene cutting boards, hydraulic oil and operating manual
Model | GRMA-25,30,40,50,60,80,100 |
Max Cutting Force | 25 to 100 tons |
Cutting table Widths | 1800~2500mm or more |
Cutting Head/Movable trolley | 500 x 500mm up to 1000 x 1000mm |
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc., |
