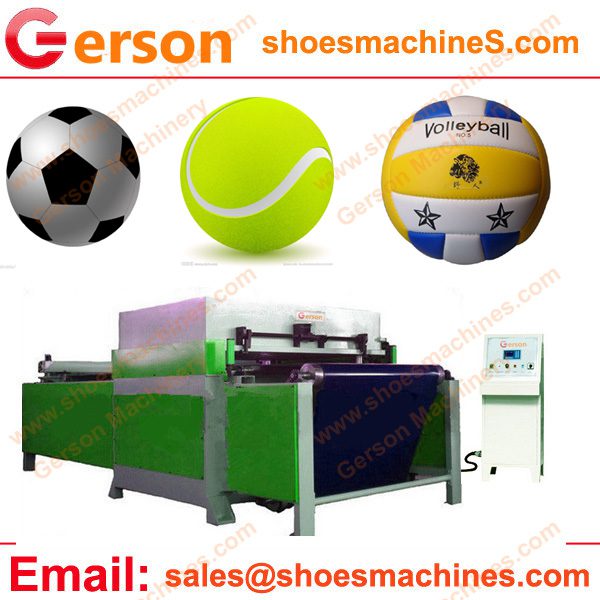

Sheet Football,Volleyball,Tennis Cutter

Gerson Sheet Football,Volleyball,Tennis Cutter is the machinery which is quietly suitable for making the football ( soccer ball),basketball,volleyball, tennis etc., sport ball.It is the die cutitng machine to be widely used for cutting pieces of football ,basketball,volleyball, tennis material .

Sheet Football,Volleyball,Tennis Cutter
Sheet Football,Volleyball,Tennis Cutter

1.It fits for die cut genuine leather , synthetic leather fabric Footbal,volleyball,tennis sport ball etc.
2.For nonmetal rolled materials of same specifications and large batches,it is a good choice to choose this machine so that it can be cutted continuously.
3.The machine is possension with the clear view over the table, thus the traveling head moves left and right flexiablely together with the cutting die.
4.The working feed type are various for your choice: manual and automatic.The automatic feeding and auto die cutting machine greatly simplify the operator’s work,they only to pick up the finished materials which reduce labor intensity and improve work efficiency. microcomputer controlles the machine with high automation degree,the production efficiency can be enhanced for 3-5 times and the power can be almost 1/3 saved,because the whole machine only need one operator.
5.We can realize any special requirements ,welcome to contact us.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm can be customized
Cutting area(mm) (500-3000)X(1000-3000)mm
Based on your material and die
Example: 1600X600mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500
