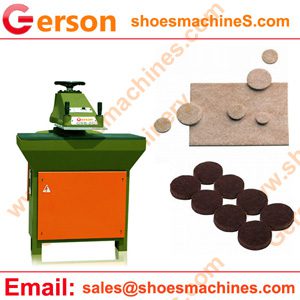

self adhesive felt pads cutting machine is applicable to die cutting operation of Self Adhesive Felt Furniture Pads Anti Skid Protector for Carpet , Tiles , Laminates and Hardwood Floors .Also can be for the cured felt (acoustic material for roof panel insulation, floor carpet underlay, bonnet, boot insulation), fire resistance felt (heat and sound insulator for automotive industry).
Key Feature of self adhesive felt pads cutting machine
1. The machine is also able to die cut other non-metal materials including: Cloth, Coated Fabrics, Cork, Fiber, Paper, Plush, Polyester, Rubber, leather, Sponge etc.
2. Apart from the original table size, other size can also be made in subject to customer’s needs.
3. Suitable cutting force can be selected to subject to specific cutting work.
4. It can cut any shapes and size by different dies.
5. Other request can be raised to me
|
Model |
GRA,GSB,GR |
|
Max cutting force |
8,10,12,14/15/16,18,20,25,27,28 tons |
|
Working area |
650,800,900,1000,1200X500,600mm |
|
Swing arm width |
370mm,500mm,600mm |
|
Cutting stroke |
90mm |
|
Motor power |
1.5KW |
|
Electric Supply Voltage |
3×440/415/400/380/220/200V, 50/60 Hz |
|
Single phase 240V/220V, 50/60 Hz |
|
|
Machines dimensions |
1000X1020X1410mm |
|
Packing size |
1100X1100X1600mm |
|
N.W(with oil) |
480-980kg |
|
G.W |
500-1000kg |
