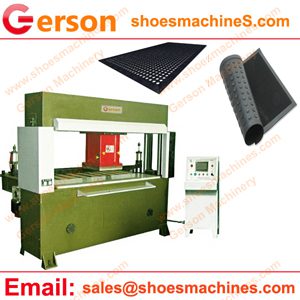

Rubber Sheet Cutting Machine is special suitable for die cutting the rubber materials such
as Rubber Flooring, Rubber Matting, Coated Fabrics and Inflatables ,heavy flooring rubber sheets,Natural sheet, neoprene rubber sheeting, Nitrile rubber, or EPDM rubber. plenty of other materials and so on.
1. Four-column and double oil cylinders driving mechanism are eqquiped to carry out
high-tonnage cutting force so as to get high effeciency.
2.Single layers or several layers of material with sheet or roll all can be well cutted by this
machine.
3.You are able to choose both manual feed type and automatic type which are easy to
operate with hydraulic power.The following are steps:Firstly, the die is separated from the
press board. Once the die is placed on the material appropriately, press board will
instantly come down to exert pressure to promote the cutting operation. While for the
latter, all that is needed is to press the upper board with die directly on the material.
4.Equipped with lubricating system for lessen wear and prolong service life.
5.Welcome to contact us for special requirement.
| Model | GRM(A)-25T to 200T |
| Max cutting force(T) | From 25 Tons to 200 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm |
| Cutting table width(mm) | 1800~2500mm or more |
| Based on your material and die | |
| Example: 1600X600mm etc., | |
| Cutting Head
Movable trolley |
500×500 to 1000x1000mm |
| Motor power | 3kw to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
Gerson can make the Rubber Sheet Cutting Machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
