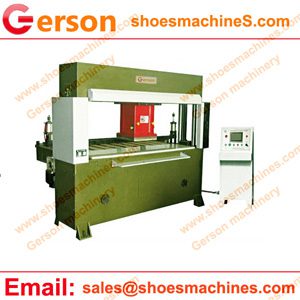

Rubber screen mat cutting machine

Gerson rubber screen mat cutting machine is die cutting machine for rubber screen mat or sheet,Fabric-reinforced screens,Rubber reinforced with nylon/polyester fabric.

Rubber screen mat cutting machine
Rubber screen mat cutting machine

Screen mats are widely used in the quarrying of aggregate for grading.
The use of rubber will reduce noise, blinding, pegging and offers exceptional wear capability

These machines can be for other rubber material,Natural Rubber,Butyl,Insertion Rubber,Clear Silicone,Neoprene Rubber,Gum Rubber,Nitrile etc., And any other soft and semi-rigid material:Leather,fabric,foam,plastic,paper etc.,

Most Rubber screen mat cutting machine need about 40 ton to 100 tons.

The cutting jobs and patterns are pre-programmed into the  cutting press machine computer or this can be carried out off-line and information sent down to the machine. Thus, the operator has no more to do than load the material and cutting tool and gather the cut pieces as they emerge from the machine: the machine dictates the speed, accuracy and material yield.

1.Both for cutting soft or semi-rigid in single layer or multiple layers.
2.Cutting head left and right together with the cutting dies ensures the clear view over the table.
3.Fully automatic cutting system avaliable including feeding, cutting, knock-out and stacking system make high productive.
5.Large cutting bed with 500*500mm trolley or 600*600trolley or more wide trolley ,Any size trolley can custom made.
6.From 25T to 100Tcutting force for choice or can custom made.
7.Special custom design or specifications welcome.

Model GRM(A)-25T to 200T
Max cutting force(T) From 25 Tons to 200 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting table width(mm) 1800~2500mm or more
Based on your material and die
Example: 1600X600mm etc.,
Cutting Head Movable trolley 500×500 to 1000x1000mm
Motor power 3kw to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
