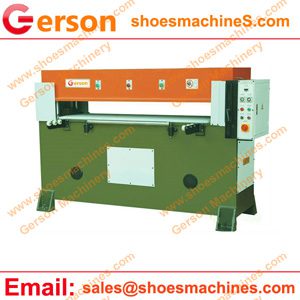

Rubber mat die cutting machine designed by Gerson ,It can die cut most rubber mat,pad material ,such as EPDM,NR,NBR,CR,SBR,NBR,PVC,PVC,PU,PE,XPE,IXPE,EVA etc.,
1.The Rubber mat die cutting machine can die cut to make any Kitchen mats,Rubber stable mats,Anti slip mats,Anti fatigue mats,Anti static mats,Gym mats,Bath mats,Bar mats,Door mat,Pool mats,Bathroom mats,foot mat etc.,
2.It works with the formed cutting dies/knife that could be mounted under the upper beam or on the table blade up,also can be hand placed upon the material.
3.The machine feed type can be hand feed ,auto sliding table feed ,roller feed,extended tray/table feed System for any production need.
4.The strong structure with automatic lubricating system (The machine is hydraulic driven system),So that can guarantees precision cutting and long time service life.
5.Various models and cutting table size,cutting force .Gerson welcome any custom build .
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm |
| Cutting area(mm) | (500-3000)X(500-3000)mm |
| Based on your material and die | |
| Example: 1900X900mm etc., | |
| Motor power | 1.5 to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
