crosslink polyethylene foam, neoprene-blend rubber, EPDE rubber for making foam or rubber closure strips, which eliminate moisture absorption and water vapor transmission.
Key Feature

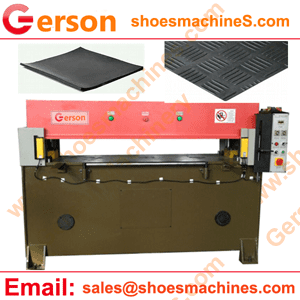

1. The adoption of hydraulic system improves the cutting efficiency without any noise. And the setting of the machine is easy to adjust to fit the demand.
2. The rigid and sturdy framework and auto balance mechanism make sure that the machine can work in a state of equilibrium, thus guaranteeing each cutting operation to reach the same depth. What’s more, the four-oriented design and double cylinders as well as many other parts make for high performance of the machine.
3. Pressure larger than 25T can be provided by our cutting machine.
4. A series id feed devices can be optionally installed with higher efficiency and less material waste:
Single or Double, Manual or automatic slide table
Pneumatic pinch rolls
Clamping beam feeds
Inboard and outboard motorized conveyor belts
Continuous cutting belts
Sheet feeds
Edge sensing
5. Apart from this machine, we also have a large variety of cutting machines for selection. We have already had proven technique in die cutting these materials: Polyurethane Foam for bedding, cushioning, protective packaging or sound studios, to Polyethylene Foam for
instrument cases, construction seals, or industrial applications, to Silicone,
Neoprene or EPDM rubber for gaskets, Carrington stocks materials .
Other request can customers build as well.
Welcome to contact us for further consultations and we are looking forward to the cooperation with you.
| Model | GRB(C)-25T to 1500T or more |
| Max cutting force(T) | From 25 Tons to 1500 Tons |
| Distance between upper press board andworktable(mm) | 50-240 |
| Cutting area(mm) | 1250×600,700,800,900,1000,1200, 1500 |
| 1470×600,700,800,900,1000,1200, 1500 | |
| 1600×600,700,800,900,1000,1200, 1500 | |
| Motor power | 1.5 to 22KW |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
