rubber clicker press

Gerson rubber clicker press can die cutting most of rubber material including : Silicone rubber,EPDM , Fluoroelastomer, Neoprene,Fluorosilicone, Natural rubber,Nitrile rubber etc.,

If you want to cuts shapes out of rubber material using a sharp metal piece die ,you could choose the Gerson clicker press. If you want to use big size dies ,you could choose the beam press.

There have many models clicker press cutting force from 5 ton to 28 tons to die cutting different size rubber material.

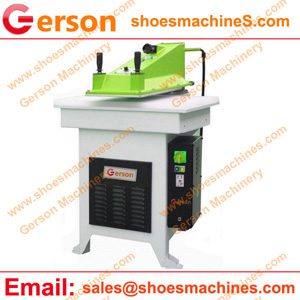

The following picture is GR model,also have GSB,GRA model:

rubber clicker press
rubber clicker press

1. The swing arm die cutter machine body are welded by steel sheets with firm structure and light weight.
2. It is provided with automatic lubricating system to lessen abrasion and prolong service life.
3. Double hands operation function  guarantee the safety of operators.
4. Double-direction oil way design provides stability and reliability.
5. Two modes such as microcomputer controller and PC electronic circuit are optional for controlling the lower limit position of stroke with high precision, flexibility and convenience.

Model GSB-8/10,GSB-2C,GR,GRA
Maximum   Cutting Force 8Tons,10,12,14,15,16,18,20,22,25,27,28 ton
Cutting speed 0.085m/s
Adjustable stroke 5-180mm
Tension distance 60-190mm
Cuttting table size 650×330mm,900×430mm,1000×500mm
size 660×780×1500mm to 1350×1180×1700mm
Motor Power 0.75KW to 1.5Kw
Net Weight (N.W.) 550Kgs to 1200kgs
