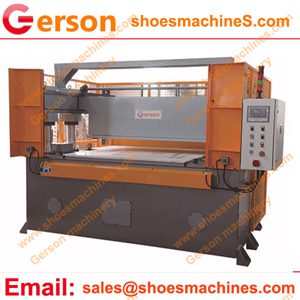

Receding Head Full Beam Die Cutting Press

Receding Head Full Beam Die Cutting Press is one of die cutting machine which have receding head .It is full beam press type .Normaly can die cutting cout pieces of Abrasives,Carpet,Cork,Felt,Foam Sponge,Leather,Paper Card,Rubber etc.,

Receding Head Full Beam Die Cutting Press
Receding Head Full Beam Die Cutting Press

1.The upper cutting beam or platen retracts to the back of the machine after every stroke which allows for precise die placement for small or pre-printed sheets & increased visibility of the cutting surface .

2.It is four column press with double balanced yoke, self lubricated bushings, hydraulic power system, control cabinet with PLC control etc.,

3..Gerson receding head press have rigid construction with mechanical balancing keeps the head and bed parallel during the cutting stroke.

4.Gerson accept any custom build die cutting machine for your production ,welcome to contact Gerson.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(500-3000)mm
Based on your material and die
Example: 1600X800mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500
