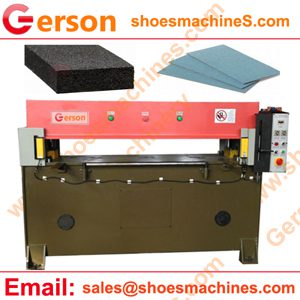

PVC Nitrile Sponge Sheeting die cutting machine

PVC Nitrile Sponge Sheeting die cutting machine is mostly suitable for die cutting Sponge sheeting such as Orange Open Cell Sponge,Polyurethane Sponge (Dynathane),EPDM Sponge ,Silicone Sponge,
Polyethylene Foam (Zote Foam),Upholstery Foam, Reticulated Air Filter Foam,PVC Foam for many different use. Such industries as aircraft, automotive, gasket, packaging, leather goods, printing, puzzle & game shoe, boot & slipper, textiles are usually in demand of this cutting machine.

PVC Nitrile Sponge Sheeting die cutting machine
PVC Nitrile Sponge Sheeting die cutting machine

Key Feature
1. The combination of double cylinders and four-oriented guide design makes the power strong enough to support the cutting work.
2. This cutting machine is equipped with advanced auto balance mechanism to protect itself from shock and noise. Besides, the machine is easy to adjust in subject different cases.
3. The machine can be kept precise by means of auto lubrication device for quite a long time.
4. The machine is able to cut sheet or roll materials no matter in single or in several layers. Besides, feed systems made up of manual and automatic ones with single or double sliding tables can be taken into consideration.
5. Larger cutting head and size are available. What’s more, other request can also be raised to meet.

Model GRB-25(30) GRB-35(40) GRB-50 GRB-60 GRB-80 GRB-100 GRB-150(200) GRB-300(400,500)
Max cutting force(T) 25T,30T 35T,40T 50T 60T 80T 100T 150T, 200T 300T,400T.500T or more
Distance betweenupper press board andworktable(mm) 50-180 50-240 50-240 50-240 50-240 50-240 50-240 50-240
Cutting area(mm) 1250×500 1250×6001250×710 1250×800 1250×800 1250×800 1250×900 1250×1000 1250×1500
1470×500 1470×6001470×710 1470×800 1470×800 1470×800 1470×900 1470×1000 1470×1500
1600×500 1600×6001600×710 1600×800 1600×800 1600×800 1600×900 1600×1000 1600×1500
Motor power 1.5KW 3KW 4KW 5.5KW 7.5KW 7.5KW 11KW 22KW
Electric SupplyVoltage 3 phases x440/415/400/380/220/200V, 50/60 Hz
Machine Net weight (KG) 1400 1700,1800 2800 3500 5000 6500 9000 12000
1500 1800,2000 3200 3800 5400 7000 9500 13000
1700 2000,2200 3400 4200 5800 7500 10000 14000
 Gerson could design and manufacture according to customer production requirement.
