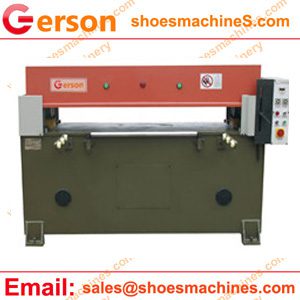

Precise Four-column Plane Hydraulic Cutting Machine

Gerson Precise Four-column Plane Hydraulic Cutting Machine is designed with four pillars. This stable structure makes the machine body more stable, thus making it easy to cut many materials: leather, fabric, foam, plastics, wood panel, cork gaskets, felt, abrasives, and paper in roll or sheet.

 Precise Four-column Plane Hydraulic Cutting Machine

Precise Four-column Plane Hydraulic Cutting Machine

1. Thick materials can also be cut due to adjustable cutting height.
2. The machine is kept balanced due to auto balance system.
3. When carrying out cutting operation, the machine can get to high speed. In the meanwhile, little noise is let out.
4. The surface of the machine is especially of high rigid and the structure is stable enough to stand heavy load.
5. Whenever in need, the auto lubrication system comes to work to reduce wear, thus making it east to maintain the components.
6. We have a large number of optional devices for selection including automatic feed roller, automatic belt sheet feeder, PLC control etc.
7. Welcome to contact Gerson if any other request or customization .

Model GRB(C)-25T to 1500T or more
Max cutting force(T) From 25 Tons to 1500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
