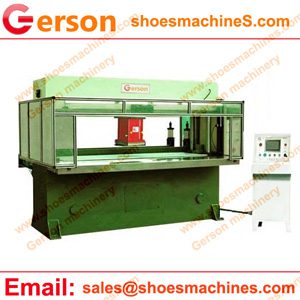

PLC programmable control cutting machine

Gerson PLC programmable Logic control  cutting machine is die cutting machine with Programmable Logic Controler (PLC).So we called PLC programmable control cutting machine.

Suitable for cutting: Automotive Components, Abrasives, Cork, Felt, Textiles, Foam, Sponge, Footwear, Gaskets, Rubber, Seals, Composites, Medical Products, Packaging, Foam Packaging, Paper, Card, Plastics and more.

PLC programmable control cutting machine
PLC programmable control cutting machine

a. Digital control system of “PLC + coder” human-machine interface is adopted to realize automatic feeding, pattern arrangement and cutting. Five kinds of arrangement figures are optional for automatically setting cutting times with high precision. The positioning precision can reach 0.2mm so as to save materials, enhance work efficiency and reduce labor intensity.
b. PLC program control center is provided with memory function for the settings of operation instructions, which are not influenced in case of power failure or power-cut after work, so as to facilitate operation for the next time.
c. Double oil cylinders drive, four-column guiding and automatic balancing are adopted to guarantee identical cutting depth for each time.
d. Three operation modes such as automatic, semiautomatic and manual operations are optional, which are free and flexible.
e. The cutting head can carry out automatic transverse movement and automatic positioning. The die cutters is fixed by electromagnetic suction disc. Without the need of setting die cutters, the upper and lower die cutters can carry out cutting freely with convenient operation.
f. The automatic lubricating system ensures machine precision and prolongs service life.

Model GRMA-25,30,40,50,60,80,100
Max Cutting Force 25,30,40,50,60,80,100 tons
Cutting table Widths 1800~2500mm or more
Cutting Head/Movable trolley 500 x 500mm up to 1000 x 1000mm
Gerson can make the cutting machine according to your specifical requirement :

such as cutting force power,worktable size,motor,color etc.,
