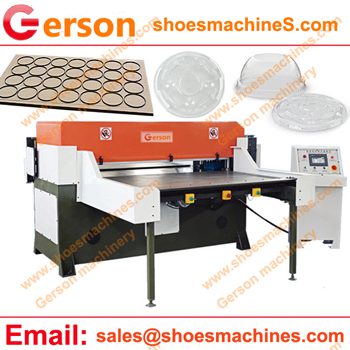

Plastic Storage Caps Lids Die Punch cutting Press machine is die punch press machine for making cutting out Plastic Storage Caps Lids or other similar products.
1.The die punch cutitng press machine designed and manufactured by Gerson machinery .It is for cutting any shapes of Plastic Storage Caps Lids by the die cutting molds.
2.The press machine is for cutting plastic sheet with manual feed material or autoamtic feed material based on your request.
1) .If manual feed material ,feed the plastic sheet into the machine ,then punch out the parts by the machine and dies.After finished the parts,pull out the sheet and pick up the parts .
2).If autoamtic feed material ,just press the button ,the feed table will autoamtic move into the machine and cutting the parts from sheet material .After cutting ,the feed table will come out .The worker only need pick parts up from the sheet. There have one sinlge feed table ,or double sided feed table .
3.The die punch cutitng press machine is using hydraulic driven system with Double Hydraulic Cylinders and autoa balance system which can ensure the machine stable and safe with large and smooth cutting process.
4.Gerson can design and manuafure the machine and dies molds for your production requirement.welcome to contact us any time.
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm |
| Cutting area(mm) | (500-3000)X(500-3000)mm |
| Based on your material and die | |
| Example: 1600X800mm etc., | |
| Motor power | 1.5 to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
