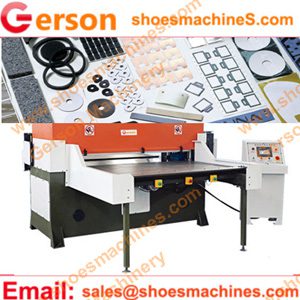

Plastic shape cutting machine is cutting machine for plastic sheet .The machine can die-cut out the required final shaped components out of flate plastic.
1.Gerson die-cutting machine can die cut plastic material such as: Styrene,Formex,Mylar,Polypropylene,Polyester,Polyethylene,HDPE,Teflon,LPDE,High Impact,Polystyrene,PETG,ABS,UHMW,Polycarbonate,Vinyl etc.,
2.The machine adapts four-column balanced cutting plates design to keep the same pressure at each point of cutting plates.
3.This plastic shape cutting machine can cut sheets or rolls of material in single or multiple layers (depending on the material and requirement) when using all standard cutting die/knife/mould or tool formats:steel rule die, wood forme die or forged steel die etc.,Gerson also can provide the cutting die
4.Gerson machine have different feed type for plastic sheet:manual feed silde table,autoamtic feed sliding table etc.,
5.All the Gerson machine can custom built based on the production requirement: hydraulic pressure ,table size,stoke size,feed type etc.,
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm |
| Cutting area(mm) | (500-3000)X(500-3000)mm |
| Based on your material and die | |
| Example: 1800X700mm etc., | |
| Motor power | 1.5 to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
