plastic cutting press

Gerson plastic cutting press is die cutting press that for die cutting most plastic material sheet or roll etc., These plastic including:PVC,Vinyl,Pleather,PVA,PVB,PE,PLA,PET,PP,HIPS,HDPE,LDPE etc.,

For cutting small plastic products ,The following cutting machine is good choice:

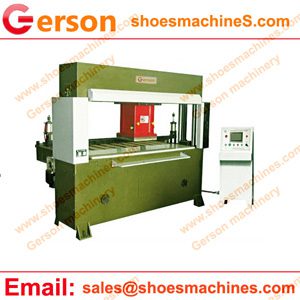

plastic cutting press
plastic cutting press

1.Two hands operation make the worker safty.
2.Easy working operation and stable working function.
3.The position of the swing arm is adjusted by the upper handwheel on the top of cuttng press,which can obtain the best cutting position and can increase work efficiency and prolong the service life of cutting dies or boards.
4.More than 10 tons cutting force(12-500 tons) and more large cutting table is avaliable  .and also have smaller 5 ton mechanical press.

Model GSB-8/10,GSB-2C,GR,GRA
Maximum   Cutting Force 8Tons,10,12,14,15,16,18,20,22,25,27,28,30 ton
Cutting speed 0.085m/s
Adjustable stroke 5-180mm
Tension distance 60-190mm
Cuttting table size 650×330mm,900×430mm,1000×500mm
size 660×780×1500mm to 1350×1180×1700mm
Motor Power 0.75KW to 1.5Kw
Net Weight (N.W.) 550Kgs to 1200kgs













For the bigger cutting area and bigger size material ,the following can be good choice.

The cutting area can from 1250mm ×500mm to 2500mm×2500mm.The cutting power or pressure from 30 tons to 500 tons.

1.Using double fuel tanks and precision four-post self auto-balancing linkage guarantees the same cutting depth of each cutting position.

2.The pressing board of cutting carries out slow cutting when it contacts the die cutters, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.

3.Precise cutting balance can effectively reduce the loss of knife mold and cutting plate.

4.The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.

5. The following equipment tools can improve the productivity for customers choice :Automatic feeding material system and Inboard and outboard material conveyors ,material feed rollers and automatic knock-out systems

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
