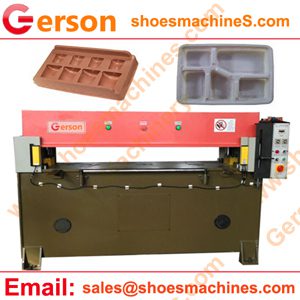

Plastic Blister insert tray die cutting machine is a beam type cutting machine is die cutting machine for cutting plastic trays ,blister packaging insert tray for medical ,cosmetic blister,The material can be PP,PS,TPU,PVC, TPU/PETG etc., all plastic material. It is also applicable in many fields including Abrasive, Automotive, Clothing, Foam, Gasket, General Die Cutting, Medical, Textile, Toys Games and Sports.
Key Feature
1. Relatively speaking, this machine is distinguished for large room for large cutting dies. The max size can be equal to the cutting beam.
2. A full set of advanced equipment: four post, double oil tanks & mechanical balance system.
3. Double mechanical balance device plays a important role in the machine’s excellent performance: keep the cutting bed at the horizontal position & distributes the strong power everywhere evenly.
4. The machine has superior cutting ability: Foam, textiles, and plastics, Rubber, packing, and vinyl Leather, composites, and fiberglass, Vinyl and carpet floor tiles, Cork, wood, and gasket materials Filters, abrasives, and shoe components, Electrical insulation, medical supplies, and sponges, luggage, toys, etc. can be cut by the machine.
5. Optional devices: Single or Double Sliding Work Tray, Automatic Belt Feed, Belt Conveyor etc.
6. Special specifications can be raised to fulfill.
1. Relatively speaking, this machine is distinguished for large room for large cutting dies. The max size can be equal to the cutting beam.
2. A full set of advanced equipment: four post, double oil tanks & mechanical balance system.
3. Double mechanical balance device plays a important role in the machine’s excellent performance: keep the cutting bed at the horizontal position & distributes the strong power everywhere evenly.
4. The machine has superior cutting ability: Foam, textiles, and plastics, Rubber, packing, and vinyl Leather, composites, and fiberglass, Vinyl and carpet floor tiles, Cork, wood, and gasket materials Filters, abrasives, and shoe components, Electrical insulation, medical supplies, and sponges, luggage, toys, etc. can be cut by the machine.
5. Optional devices: Single or Double Sliding Work Tray, Automatic Belt Feed, Belt Conveyor etc.
6. Special specifications can be raised to fulfill.
| Model | GRB(C)-25T to 1500T or more |
| Max cutting force(T) | From 25 Tons to 1500 Tons |
| Distance between upper press board andworktable(mm) | 50-240 |
| Cutting area(mm) | 1250×600,700,800,900,1000,1200, 1500 |
| 1470×600,700,800,900,1000,1200, 1500 | |
| 1600×600,700,800,900,1000,1200, 1500 | |
| Motor power | 1.5 to 22KW |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
Feeding type: Custom build.
