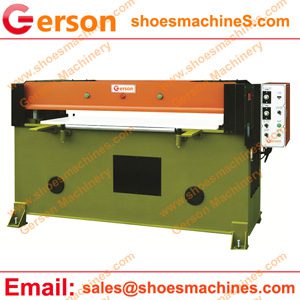

PE foam cutting machine

Gerson pe foam cutting machine can die cutting most PE foam which is for Automotive, central air conditioning, electronic appliances, refrigeration equipment, construction, culture, education utensils, handicrafts performance: shockproof, heat insulation according to  drawings, cutting any shape and size with cutting knife.

PE foam cutting machine
PE foam cutting machine

This die cutting machine most used for large area soft material die cutting .The cutting area can from 1250mm ×500mm to 2000mm×2000mm.The cutting power or pressure from 30 tons to 500 tons.

1.Using double fuel tanks and precision four-post self auto-balancing linkage guarantees the same cutting depth of each cutting position.

2.The pressing board of cutting carries out slow cutting when it contacts the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.

3.Precise cutting balance can effectively reduce the loss of knife mold and cutting plate.

4.The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.

5. The following equipment tools can improve the productivity for customers choice :Automatic feeding material system and Inboard and outboard material conveyors ,material feed rollers and automatic knock-out systems

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
