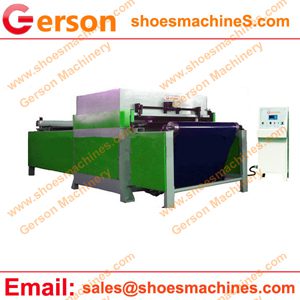

Gerson die cutting machine is very good for die cutting PC/PP/PET/PVC etc.,plastic material.This material is widely used for protective film, LCD film, luminescent chip, touch panel, flexible printed circuit boards, insulation film, label stickers, foam, automotive upholstery, nameplates, copper foil, aluminium foil.
Gerson can design and manufacture die cutting machine for customers production need .Any special requirement welcome to contact Gerson .
Normal die cutting machine for PC/PP/PET/PVC is Gerson beam press .From the smallest 25 Ton for the largest 500 Tons and up on request, Gerson Precise cutting machine are adaptable to some lots of applications.
1. Operate the structure of double cylinder and precise four-column automatic balancing links to make sure same cutting depth in each and every cutting region.
2. If the pressure plate presses downward to touch the die cutter, the appliance automatically slowly cuts, that make that there are no error involving the top and bottom layers of cutting materials.
3. Have setting structure especially, that makes adjustment of stroke safe and accurate coordinating with cutting force and cutting height.
4. Set automatic force feed to ensure the precision of machine and raise longevity of machine.
Applications:
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm |
| Cutting area(mm) | (500-3000)X(1000-3000)mm |
| Based on your material and die | |
| Example: 1600X600mm etc., | |
| Motor power | 1.5 to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
Gerson can make die cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,feeding type etc.,
