Pattern Die Cutting Machine

Gerson pattern die cutting machine is cutting for leather pattern,fabric pattern,vinyl pattern,paper pattern or any other similar material pattern etc.,

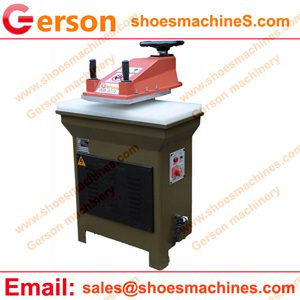

For the small area pattern die cutting machine ,we recommend our swing arm cutting machine for pattern of the material:leather,fabric,vinyl,paper etc.,

Pattern Die Cutting Machine
Pattern Die Cutting Machine

For the big area pattern cutting ,we recommend our full beam cutting machine with large cutting power and cutting table.

1.These machines are used for a wide variety of die cutting applications:soft material to semi-rigid materials such as gaskets, leather, cork, rubber, elastic, foam, and other like materials.
2.Strong body and all moving parts are made of hardened steel and are self-lubricating.
3.Double hand operation make the safety and hydraulic system with low noise.
4.cutting power, size of the cutting table and of the cutting platen can be custom build.
5.Any special requirement welcome contact us.

Model GSB,GR,GRA serials
Maximum   Cutting Force 8Tons,10,12,14,15,16,18,20,22,25,27,28,30 ton
Cutting speed 0.085m/s
Adjustable stroke 5-180mm or more
Tension distance 60-190mm or more
Cuttting table size 650×330mm,800,900×430mm,1000,1200×500,600mm
size 660×780×1500mm to 1350×1180×1700mm
Motor Power 0.75KW to 1.5Kw
Net Weight (N.W.) 550Kgs to 1200kgs
