paperboard cutting machine

Gerson die cutting machine for die cutting  paperboard including :Transformer Press Paperboard,Insulating cable paper,Diamond Dotted Paper,Varnished Paper,mica paper etc.,

For the big area die cutting ,The beam press can be good for paperboard.

If  die cutting small pieces , The swing arm cutting machine and travelling head cutting machine can be good choice.

The following is beam press features and advantages:

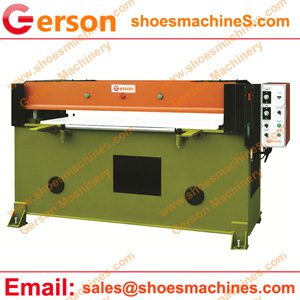

 paperboard cutting machine

paperboard cutting machine

1. The machine is widely used for cutting of non-metal materials in various industries by cutting die.
2. Adopt double oil cylinder, precise double-crank connecting rod mechanism, which can guarantee that the cutting depth at every cutting position is the same.
3. With special setting mechanism, and equipped with cutting die and cutting depth setting, the travel adjustment is simple and accurate.
4. The pressing board of cutting carries out slow cutting when it contacts the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
5. The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(1000-3000)mm
Based on your material and die
Example: 1600X600mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make die cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,feeding type etc.,
