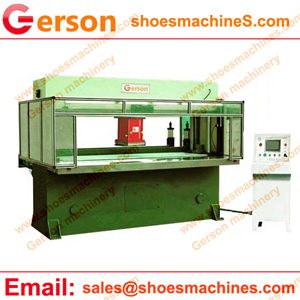

Non Asbestos Brake Lining Die Cutting Machine

Gerson Non Asbestos Brake Lining Die Cutting Machine is die cutting press machine for the making non asbestos brake lining applications in the Automotive industry including : asbestos brake lining ,nonasbestos organic brake pad etc.,

Non Asbestos Brake Lining Die Cutting Machine
Non Asbestos Brake Lining Die Cutting Machine

1.Most asbestos brake lining or non asbestos organic brake pad cutting machine is Gerson traveling head cutting machine that have used in many brake lining factory .
2.The machine die cut with the shaped cutting knife/die that mounted under the cutting head.Each time after finishing cutting, the punch head itself can automatically remove, easy to operate, safe and reliable.So that donot need to position the die again.
3. There have two knids :Manual traveling head press and CNC traveling head press.CNC traveling head press with automatic feeding and auto die cutting machine that let workers need only to pick up the finished materials, with labor intensity reduced and work efficiency enhanced. As the machine is controlled by microcomputer with high automation degree, only one worker is required for the whole machine, so that the production efficiency can be enhanced for 3-5 times and the power can be almost 1/3 saved.
4.Option:
Nesting software
Auto sheet loading
Cut parts knock out units
Auto collection of cut parts in the head or to a side conveyor
Head rotation for nesting cut parts
5.The cutting force can be from 25 to 150 tons. Different feed systems are available to assist the operator.
6.Gerson accept any custom busild and design.Welcome to contact us.

Model GRMA-25,30,40,50,60,80,100,150
Max Cutting Force 25 to 150 tons
Cutting table Widths 1800~2500mm or more
Cutting Head/Movable trolley 500 x 500mm up to 1000 x 1000mm
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,color etc.,
