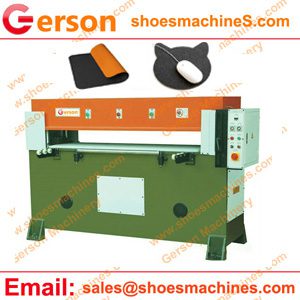

Natural Rubber Polyester Fabric Mouse Mat/Pad Cutting Machine is the die cutting machinery which the used for making the mouse mat/pad such as :VA mouse pad, rubber mouse pad, PVC mouse pad,microfiber cloth mouse mat etc.,
1.It is controlled by the hydraulic system that can cut precisely to ensure cutting quality.
2.The machine can die cut any shapes of mouse mat only changing the cutting die/knife mould.
3.The four column mechanism can make sure the high quality cutting works .
4.The strong machine body can be for the maximum cutting load and very low noise.
5.Various feeding system ,cutting pressure ,working table size are available for customers choice .Any custom built are welcome to contact Gerson machinery.
Model | GRB(C)-25T to 1500T |
Max cutting force(T) | From 25 Tons to 1500 Tons |
Distance between upper press board andworktable(mm) | 50-240 |
Cutting area(mm) | 1250×600,700,800,900,1000,1200, 1500 |
1470×600,700,800,900,1000,1200, 1500 | |
1600×600,700,800,900,1000,1200, 1500 | |
Motor power | 1.5 to 22KW |
Machine Net weight (KG) | 1600 to 16500 |
1700 to 17500 |
