Gerson die cutting machine is good used for die cutting Malar Bopet and PET etc., material .
Malar is special type of stretched polyester film. BOpet is a polyester film made from stretched polyethylene Terephthalate (PET) and is used for its high tensile strength, chemical and dimensional stability, transparency, reflectivity, gas and aroma barrier properties, and electrical insulation.

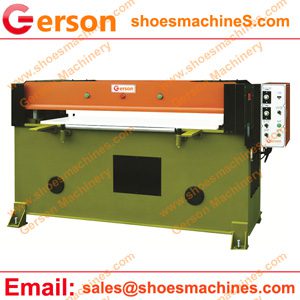

The beam press is great for die cutting Mylar BOPET material film.
1. The machine is widely used for cutting of non-metal materials in various industries by cutting die.
2. Adopt double oil cylinder, precise double-crank connecting rod mechanism, which can guarantee that the cutting depth at every cutting position is the same.
3. With special setting mechanism, and equipped with die cutter and cutting depth setting, the travel adjustment is simple and accurate.
4. The pressing board of cutting carries out slow cutting when it contacts the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
5. The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm |
| Cutting area(mm) | (500-3000)X(500-3000)mm |
| Based on your material and die | |
| Example: 1600X700mm etc., | |
| Motor power | 1.5 to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
