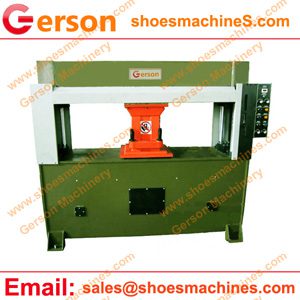

Moving Head Clicker Press

Gerson moving head clicker press is die cutting press that die cutting single or multiple layers of Fabric,Plastic, Rexene, Leather, Canvas, Cardboard, paper etc.,

 Moving Head Clicker press

Moving Head Clicker press

1.The machine moving head can move left to right by work hand or automatic depending on the type of moving head press.

2.It is easily to operate by an unskilled worker with a few instructions can well handle the machine.

3.It can cut one layer or muti layers in roll feed or sheet feed .The CNC moving head clicker machine is to obtain high production and accurate cutting edge.

4. Maual type moving head clicker :The material and cutting die/knife tool are placed under the head of the moving head clicker , the operator then presses two push buttons to bring the cutting head down under force to cut out the shape.The cutting head automatically moves to the side to allow the operator to reposition the tool for the next cut.

5.Any special requirement welcome ! Moving head size and cutting table size ,cutting force  and feed equipment can be custom build.

Model GRM(A)-25T to 200T
Max cutting force(T) From 25 Tons to 200 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting table width(mm) 1800~2500mm or more
Based on your material and die
Example: 1600X600mm etc.,
Cutting Head

Movable trolley

500×500 to 1000x1000mm
Motor power 3kw to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make the moving head clicker press according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
