movable head cutting machine

Gerson movable head cutting machine is one of die cutting machine designed and manufactured by Gerson machinery.This cutting machine with movable head or trolley ,so also called movable trolley press.

The movable head cutting machine is widely used for die cutting:

Leather: leathergoods ,shoe uppers, wallets, purses, belts,shoes, insoles, insole socks, uppers, straps
Paper:  stationery, novelties, filters, labels,Insulation materials,card
Plastics:PVC binders, lampshades, stationery products, gifts,novelties, gaskets,felt, PTFE,electronic components, flexible PCB’s touch pads, button covers, legend plates
Rubber:gaskets, seals, washers,mats
Textiles:sample swatches and pattern books, underwear and outerwear components, hats, ties,Clothing components for hats, ties, collars, shoulder pads, soft toys, advertising novelties, mini jig-saw puzzles and more, carpets and flooring,Felt strips, washers, gaskets,,Automotive components
Cork wood: gaskets and mats
Foam and sponge : gaskets, packaging, consumer products, inserts, card, promotional products, blister packs
Others:Filters for machinery, breathing apparatus and the medical industry

There have two kinds of movable head cutting machine .One is manual feeding movable head cutting machine ,the other is automatic feeding movable head cutting machine.

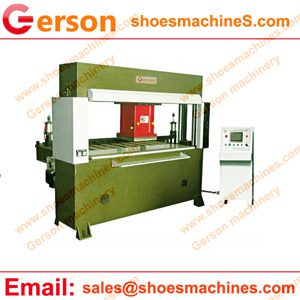

The following is automatic movable head cutting machine:

movable head cutting machine
movable head cutting machine

1.Both for cutting soft or semi-rigid in single layer or multiple layers.
2.Cutting head left and right together with the cutting dies ensures the clear view over the table.
3.Fully automatic cutting system avaliable including feeding, cutting, knock-out and stacking system make high productive.
5.Large cutting bed with 500*500mm trolley or 600*600trolley or more wide trolley ,Any size trolley can custom made.
6.From 25T to 100Tcutting force for choice or can custom made.
7.Special custom design or specifications welcome.

Model GRM(A)-25T to 200T
Max cutting force(T) From 25 Tons to 200 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting table width(mm) 1800~2500mm or more
Based on your material and die
Example: 1600X600mm etc.,
Cutting Head Movable trolley 500×500 to 1000x1000mm
Motor power 3kw to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
